Mount Si High School – Snoqualmie, WA

Industry: School

Application: High School heating and cooling

Highlights:

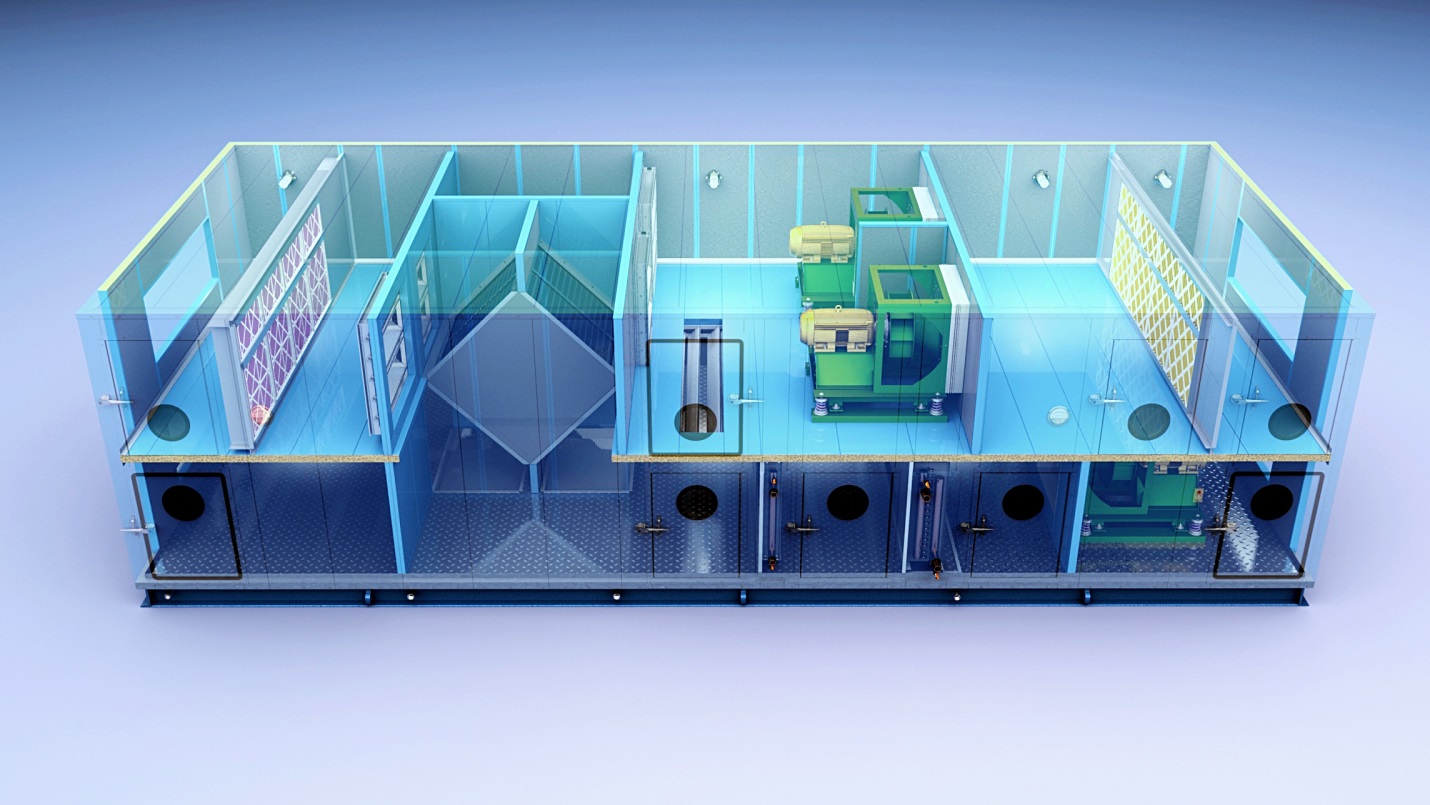

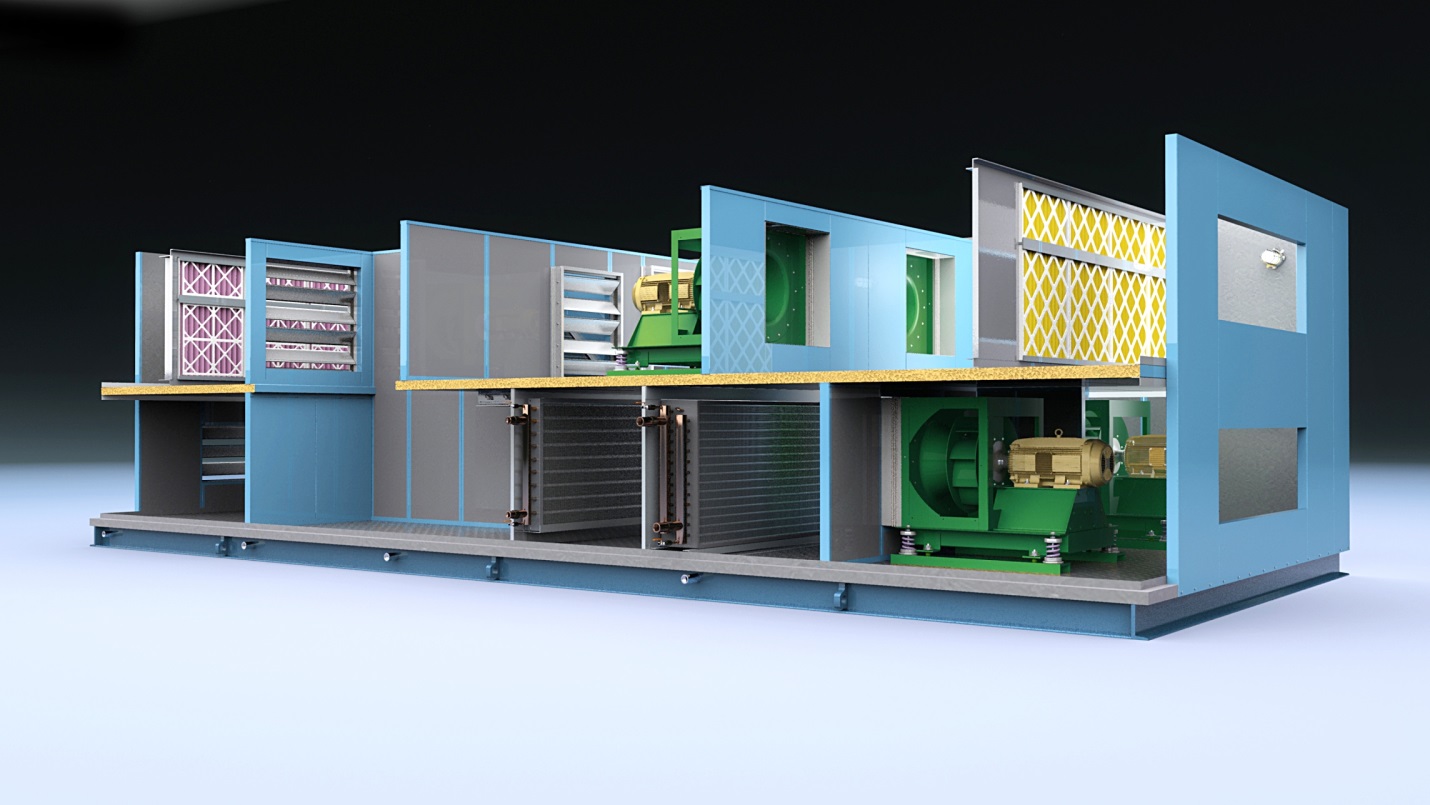

Air Handling units for classrooms and common areas:

High density insulation for maximum sound absorption
Chilled water cooling coils with stainless steel racks
Hot water heating coils
Stainless steel IAQ drain pans
100% outside air economiser
9 bladed, welded, high efficiency, direct drive airfoil fans with aluminum rotors
Internally spring isolated fans with seismic restraints
Airflow measuring stations
Aluminum airfoil dampers
MERV 8 and MERV 13 filtration
Internal lighting
Windows in access doors
Continuously welded aluminum checker plate floors

CONTACT A REP

Heat Recovery Units

Aluminum plate fin air to air heat exchangers to recovery energy on ventilation air.
Aluminum airfoil face and bypass dampers on outside air side of heat exchangers for frost control and recovery control.
Aluminum airfoil bypass dampers to minimize air pressure drop and energy when heat recovery is not needed.
Recirculation dampers.
Stainless steel cooling coil racks
Continuously welded aluminum checker plate floors
Internally spring isolated fans with seismic restraints

CONTACT A REP
