730-750 Main Street

Industry: University

Application: Heat Recovery Air Handling

Highlights:

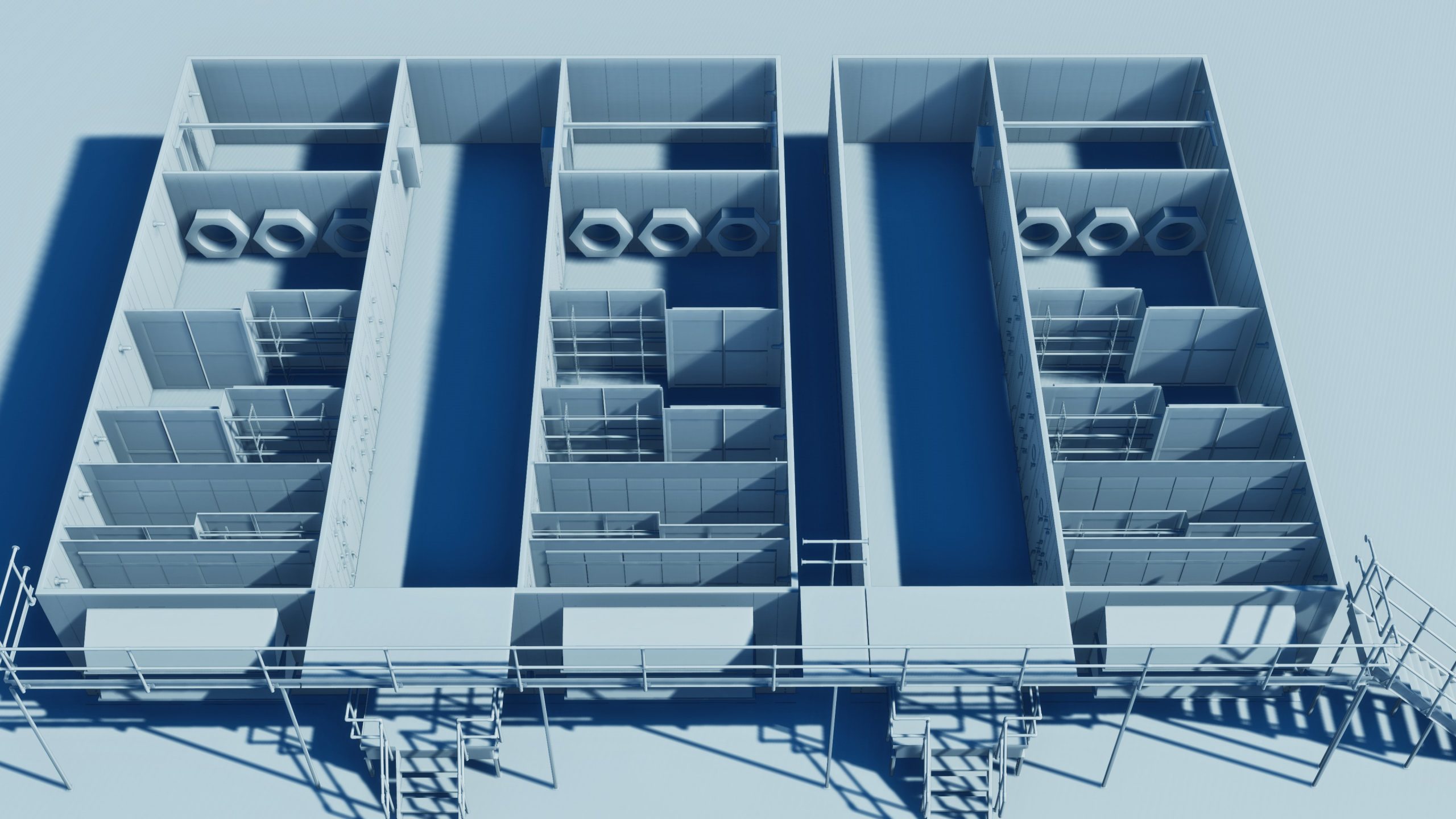

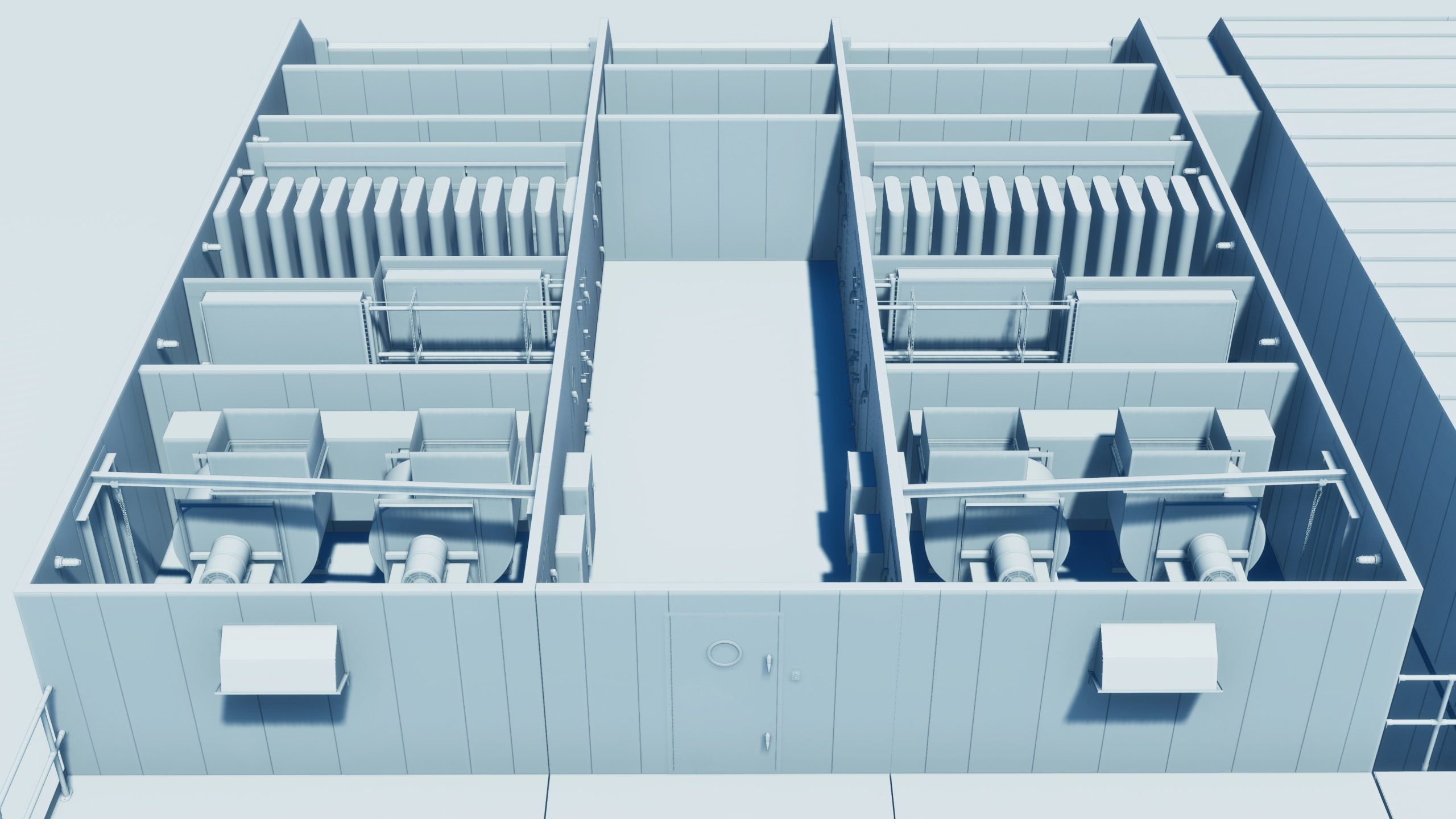

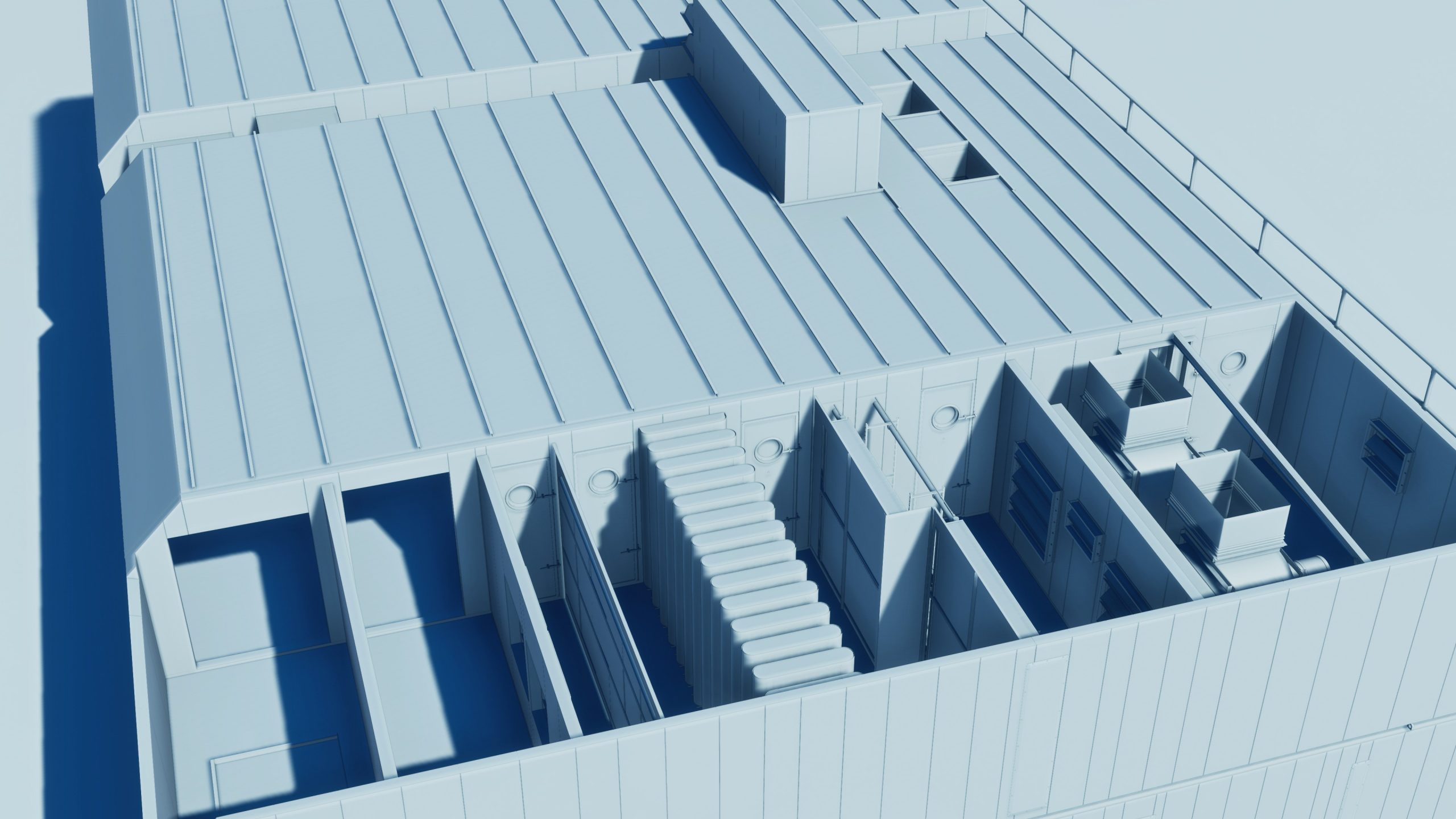

Three units combined for 72000CFM heating and cooling air handling units with run-around heat recovery.

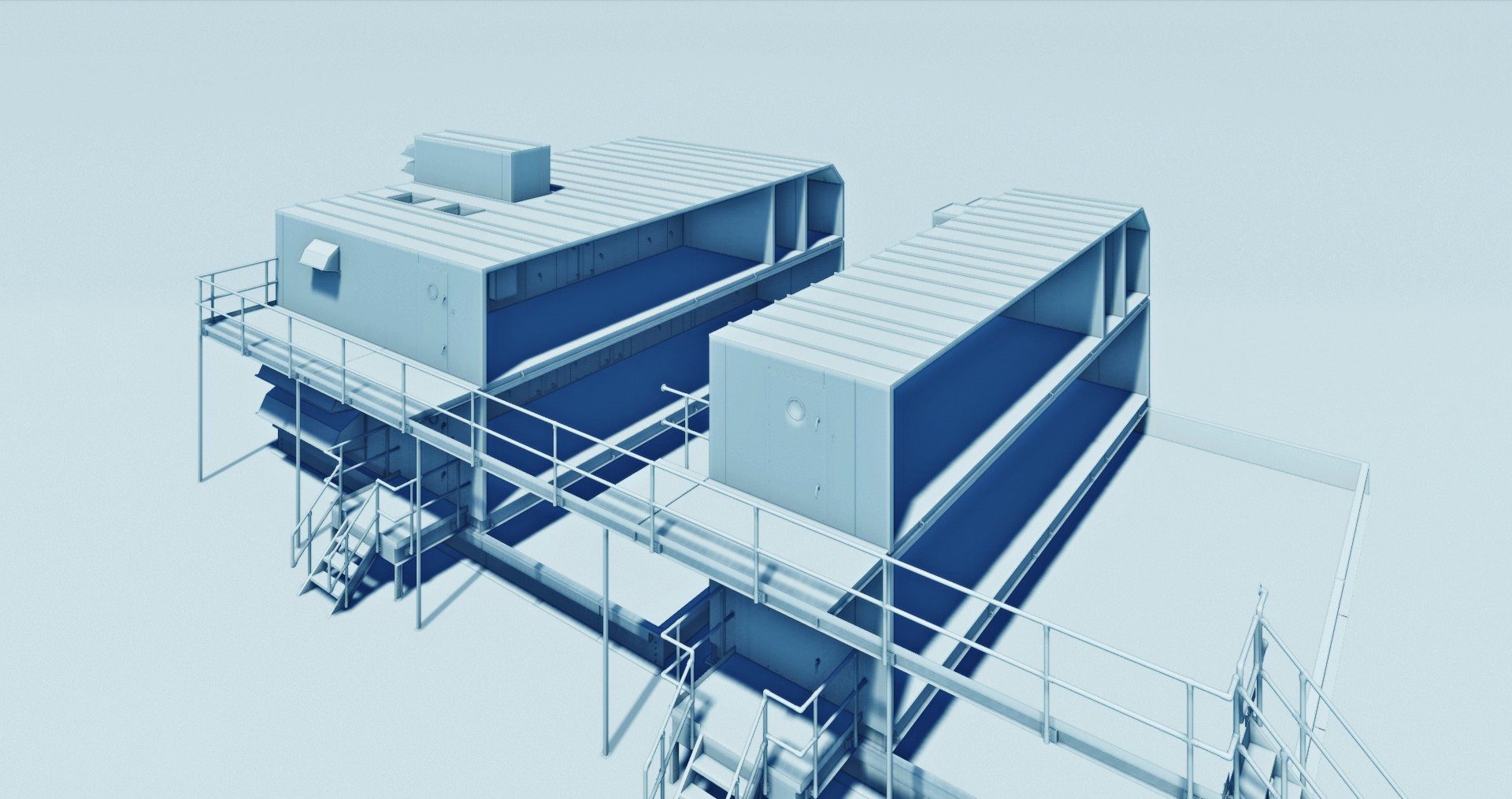

Double decker units

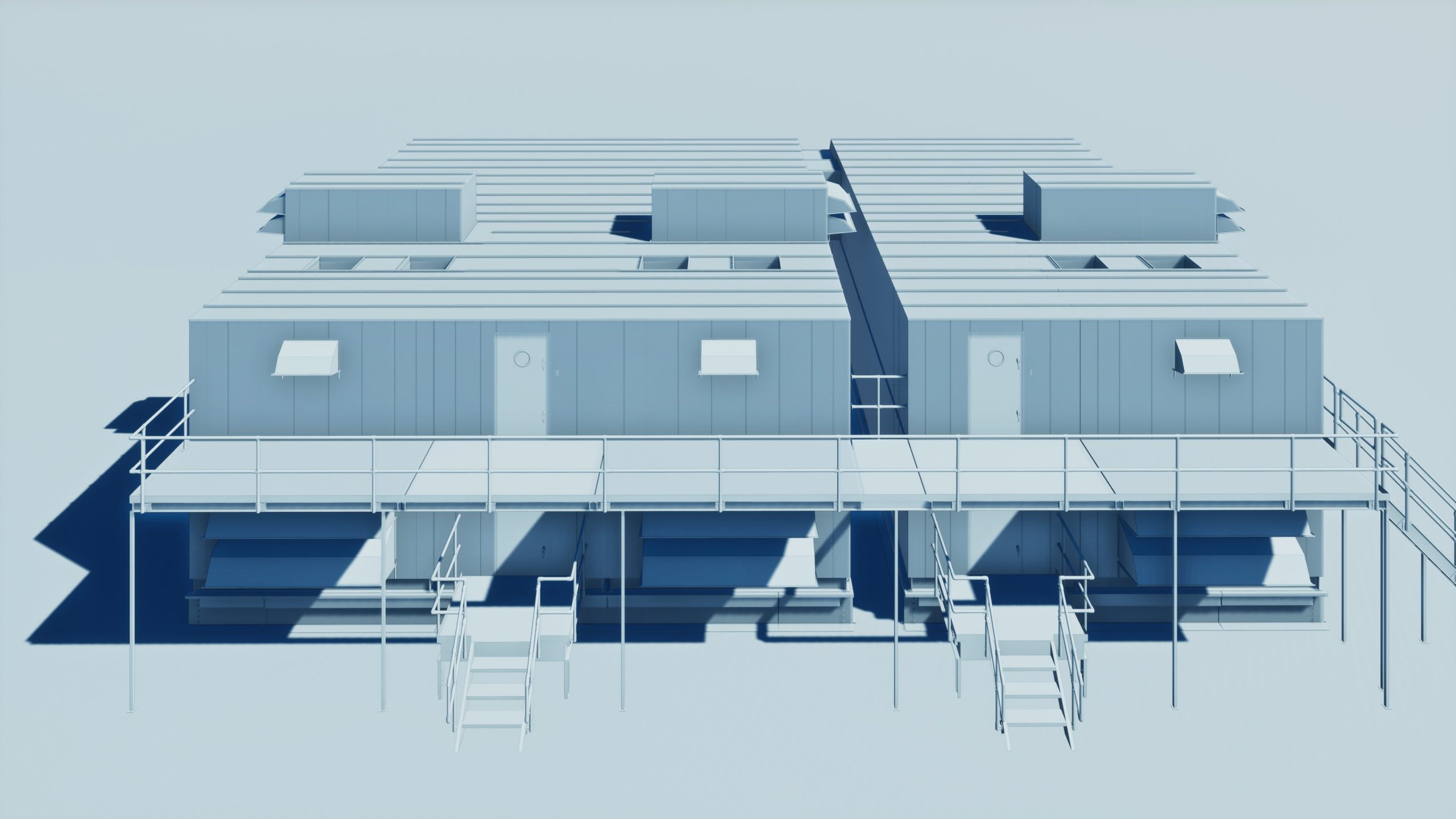

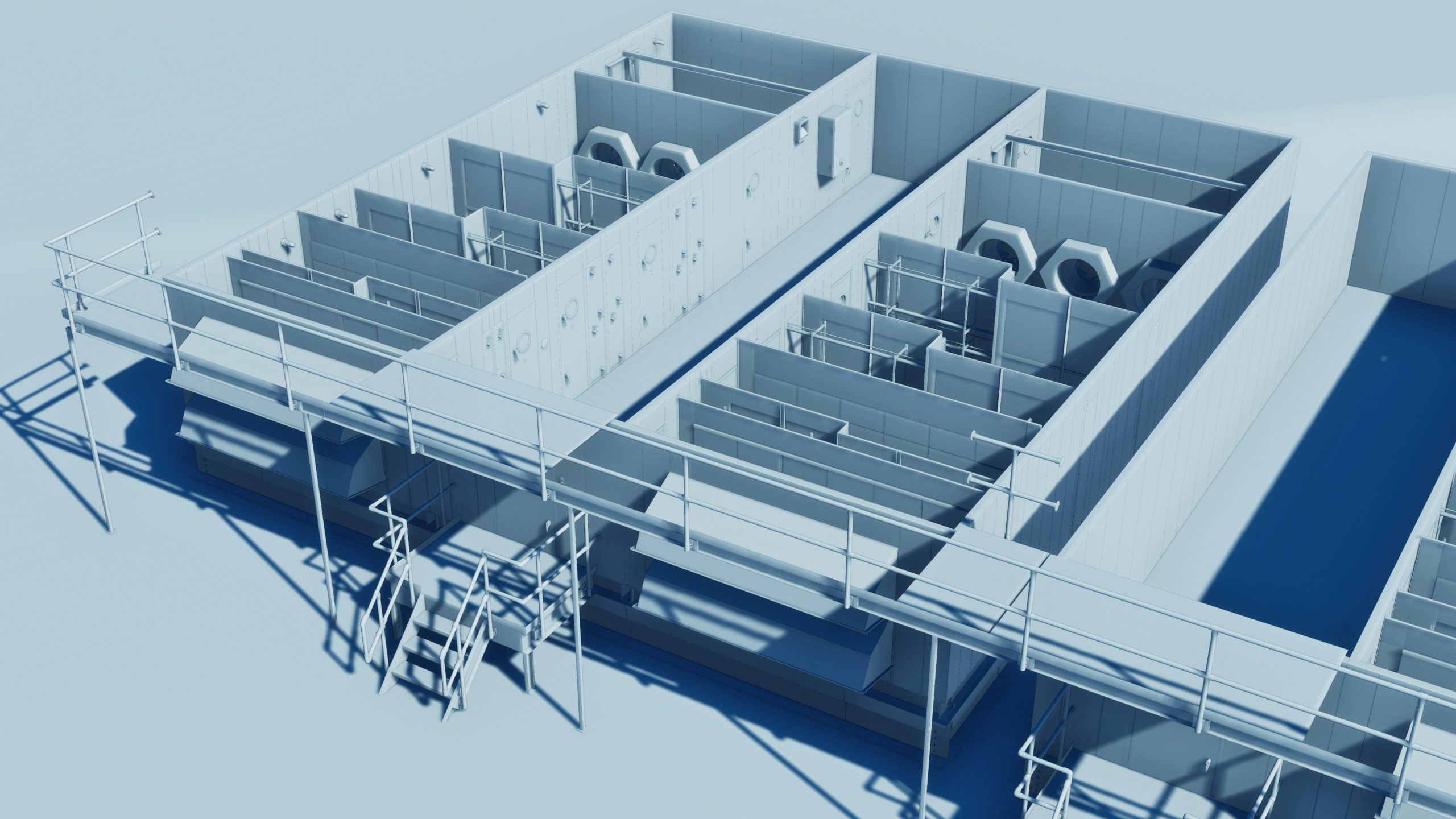

Integrated catwalks joining the upper decks of all three units
Stairs to access the catwalk

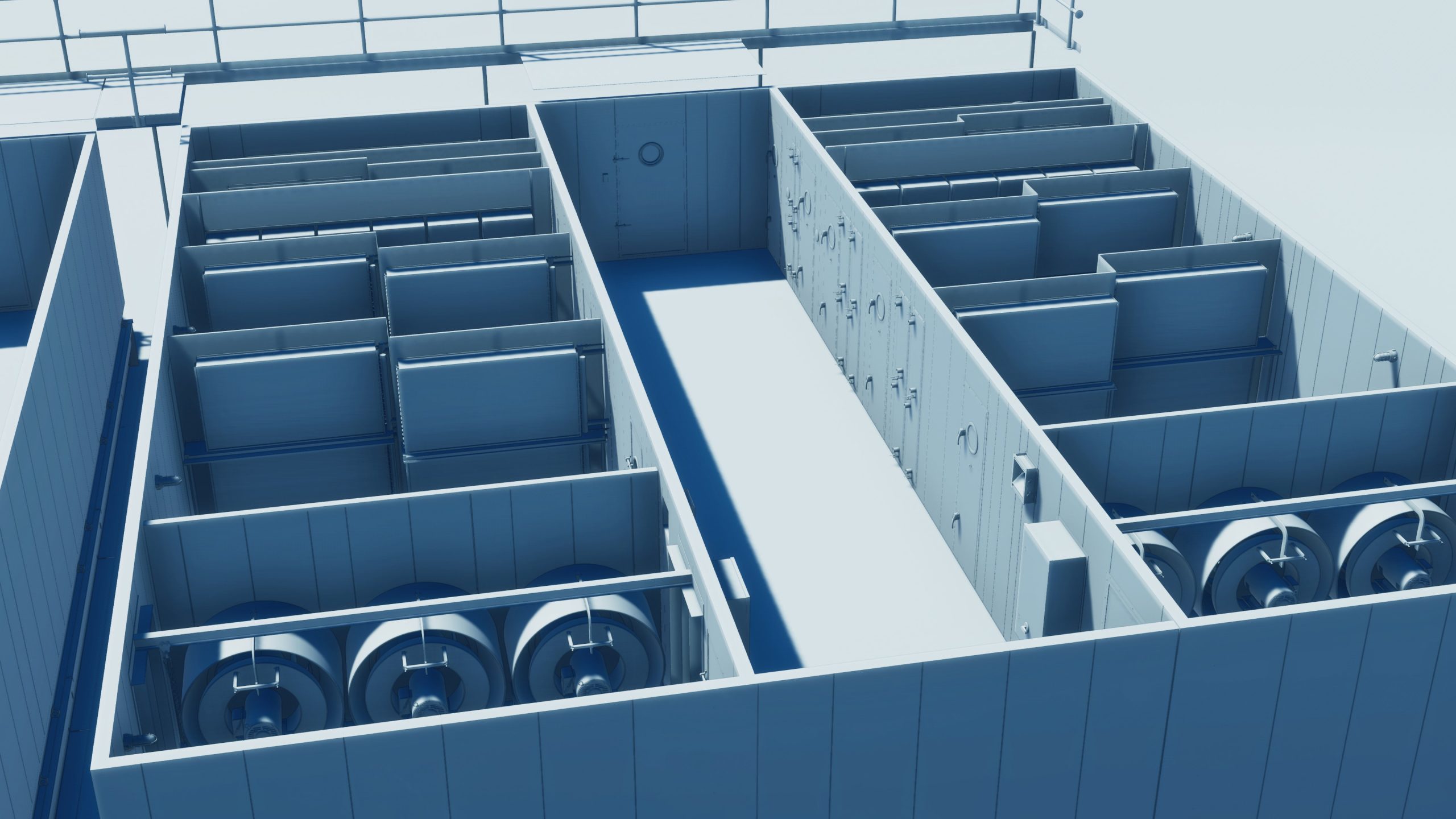

Acoustiflo supply fans with both inlet and discharge silencers combining ultra-low noise generation with very high efficiency performance
Fans internally isolated with spring isolators
Airflow measuring stations at doors
Motor removal I-beams
Snow melt coils with a summer/winter filter arrangement
Aluminum construction
Washdown liner
Silencers to limit property line noise
Chilled water cooling coils with stainless steel racks
Individually supported and removable coils
Stainless steel IAQ drain pans
Staggered coils to facilitate removal
Hot water heating coils
Aluminum airfoil smoke dampers
Internal lighting
Windows in access doors
Test ports in access doors
Continuously welded aluminum checker plate floors
Roof curbs
