CHEO Integrated Treatment Centre – Ottawa
Hospital, Projects
The new CHEO Integrated Treatment Centre will be built in front of the main CHEO building.
The treatment centre will enhance care and improve access to services for children and youth with complex medical, developmental, behavioural and mental health needs. It will also feature cutting-edge technology to support early diagnosis, personalized treatment plans and advanced therapies.
Highlights:
- 24,000 CFM
- Outdoor unit built on two levels and shipped in three sections

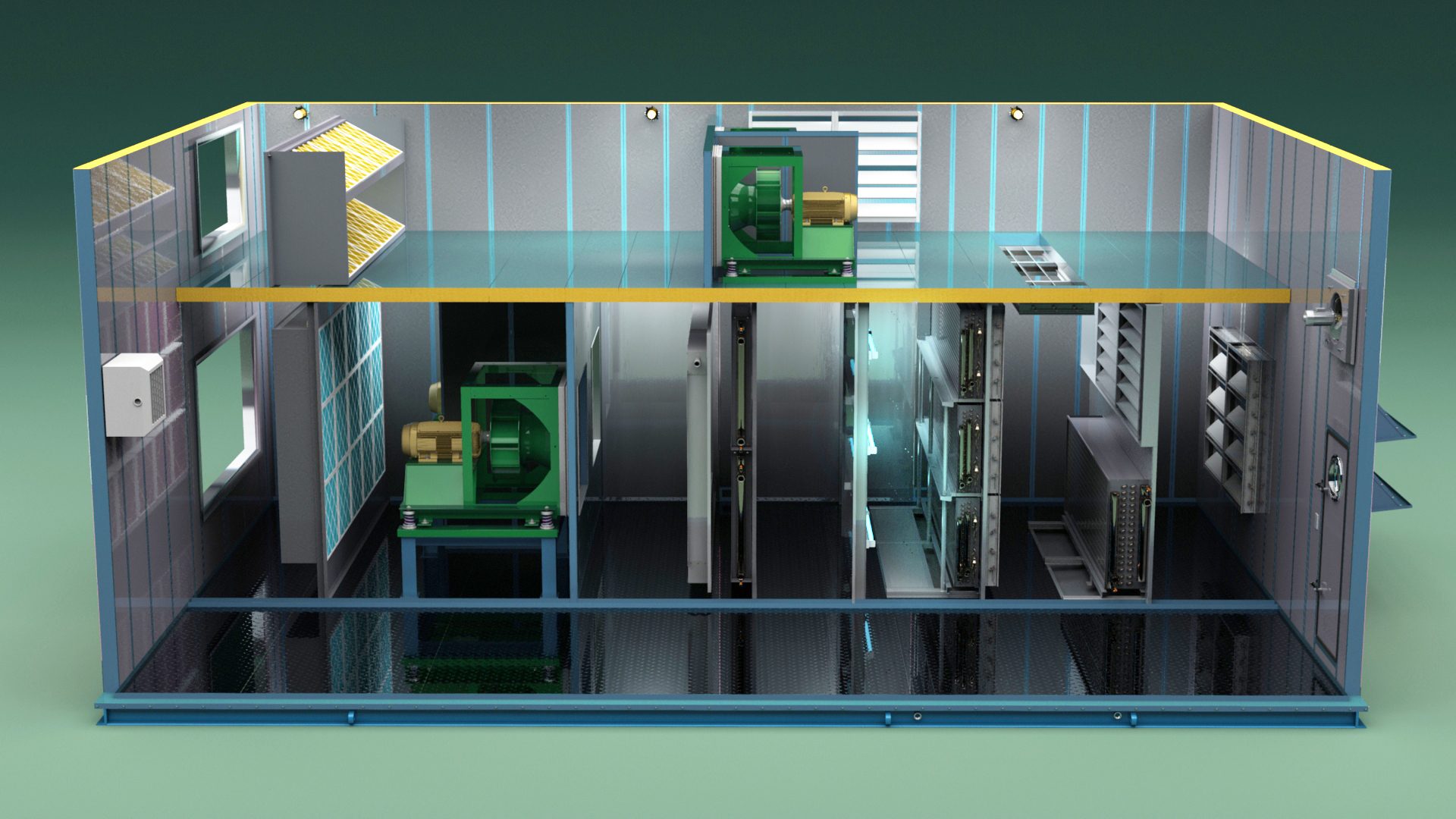

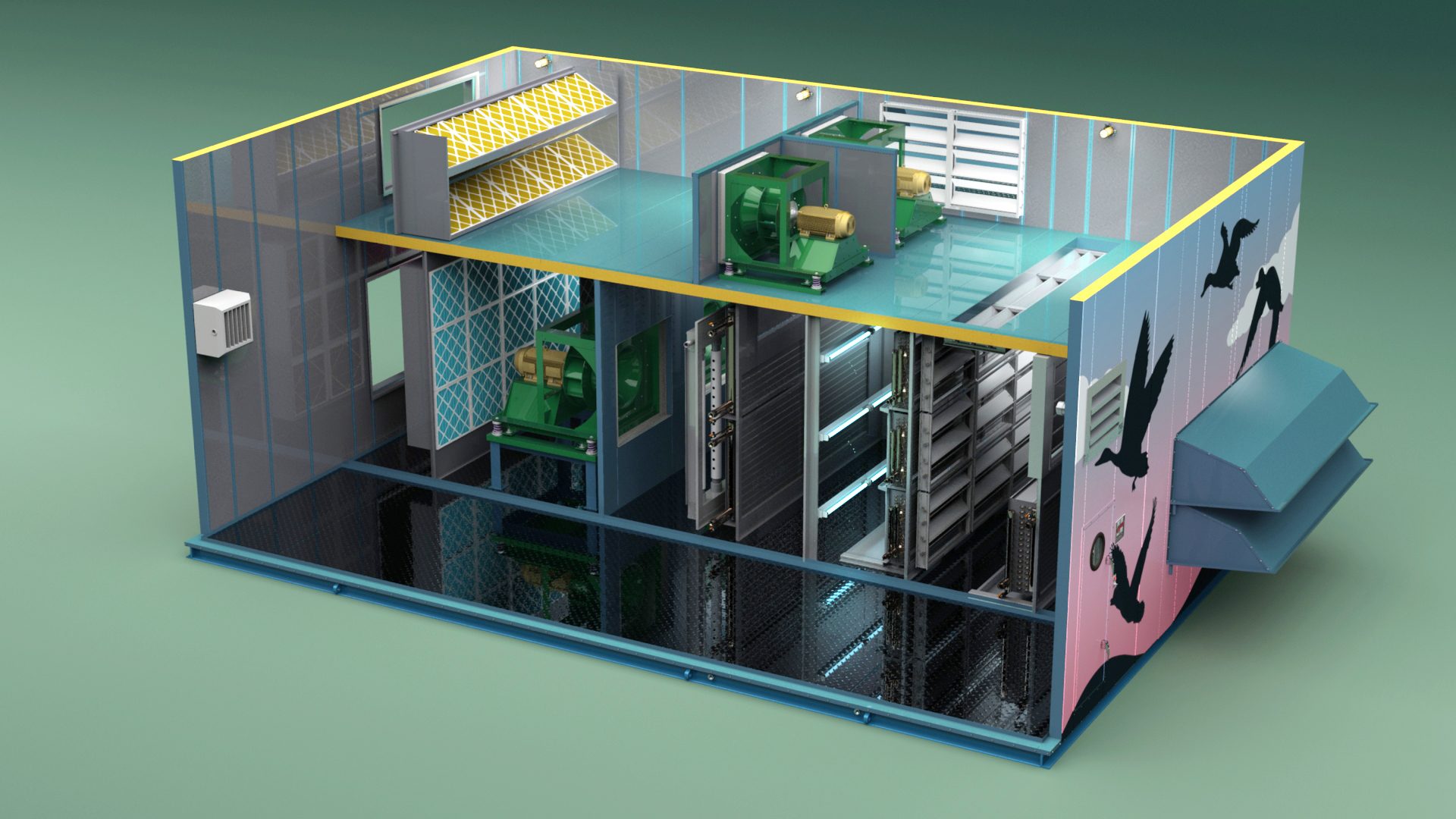

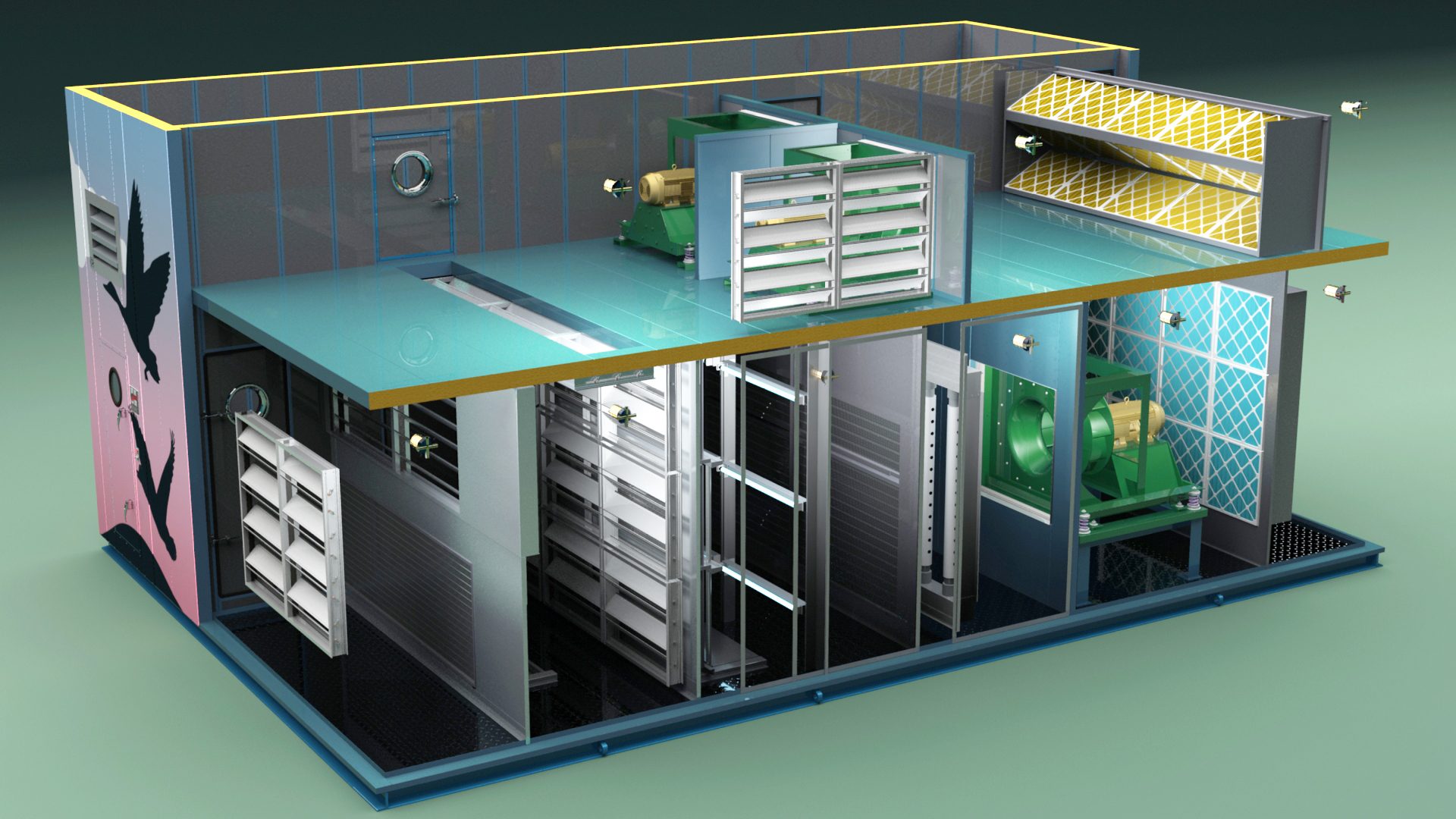

- Supply and return fan arrays of direct-drive plenum fans with premium efficiency motors and shaft grounding
- Heat recovery coil with a bypass damper for when heat recovery is not needed
- Recirculation damper for mixed air operation
- DX cooling coil, heating coil and humidifier
- Multiple stages of filtration: MERV 8, MERV 13 carbon and MERV 14
- UV germicidal lights

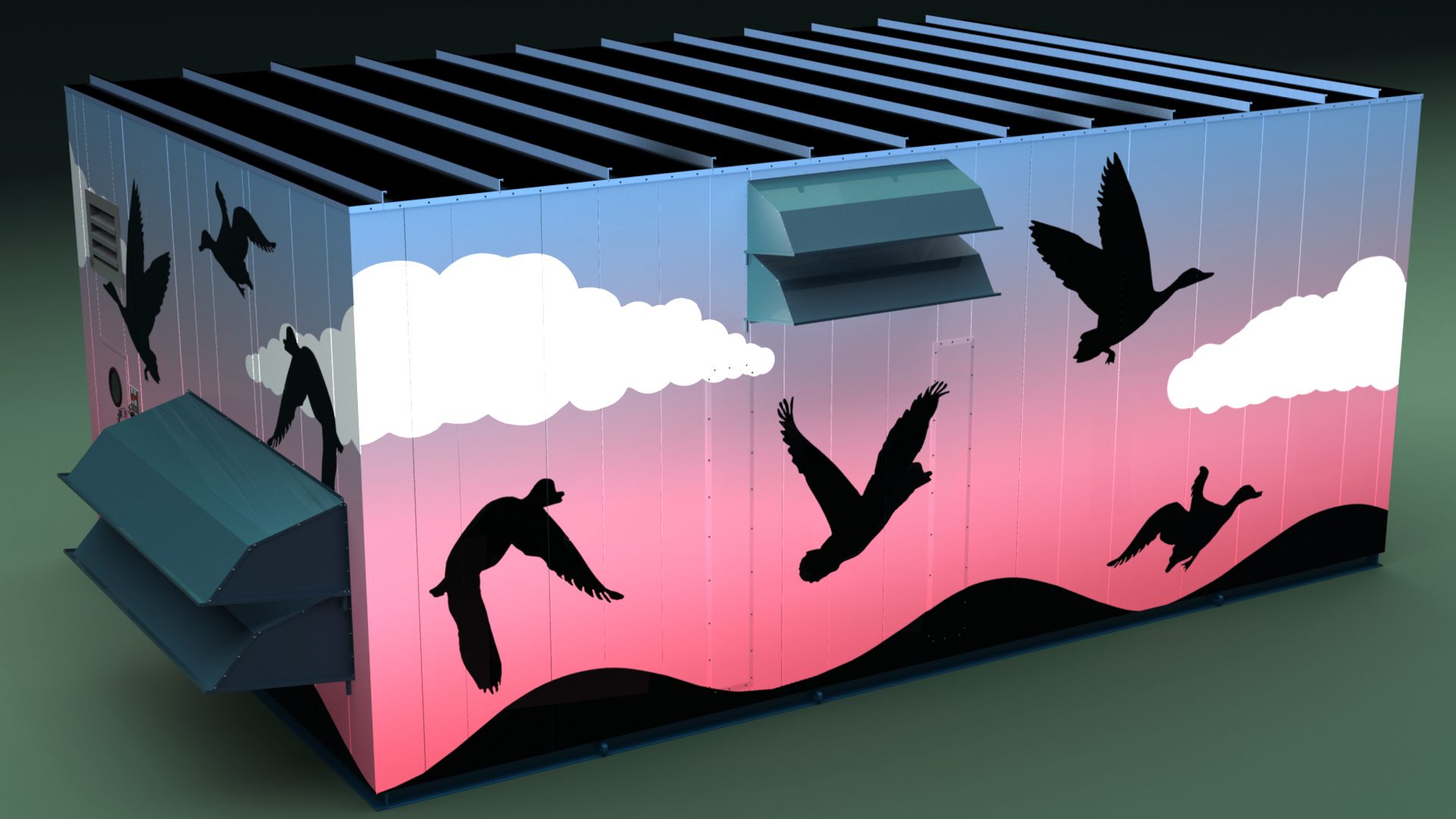

- Custom graphic wrap on the exterior casing
Project Gallery
